The hydraulic Rotary Leveling Machine Flange Facing Machine for Concrete Pile produced by Deya company is one of processing machine for flange processing. It is mainly suitable for leveling the flange after the hot bending craft with outer diameter of 300-600 or 500-800. The machine is a heavy and high precision equipment. The precision components, fuel tank and main engine of the hydraulic transmission system shall not withstand large impact and vibration.
Product parameter (specification)
|
Main Product Parameter: |
|||
|
Drive motor model: Y180L--6, 15kW; |
|||
|
Reducer model: JZQ500, transmission ratio1: 31.5; |
|||
|
Hydraulic pump model: 25YCy14--1B; |
|||
|
Hydraulic cylinder model: Y34-100, Nominal force: 1000 Kn, Stroke: 150mm, maximum working pressure: 15Mpa. |
|||
|
Manufacturing Capacity |
800~1000 PCS/8H |
Voltage |
three-phase and four-wire system |
|
Power Consumption |
37KW |
Machine Size (length*width*height) |
240CM*120CM*175CM |
Applicable product specifications (unit: mm) (dimensions can be customized)
DY - XP - B360: ∅ 300, ∅400, ∅500, ∅600;
DY - XP - B580: ∅ 500, ∅600, ∅700, ∅ 800;
Product feature
Conduct rotation flatting to the end plate through driving the double round roller by high-power motor, the end plate will not be deformed;
The operation of the Flange Facing Machine for Concrete Pile is simple and safe;
It is suitable for the processing of end plates of various types, the working efficiency is high.
Application

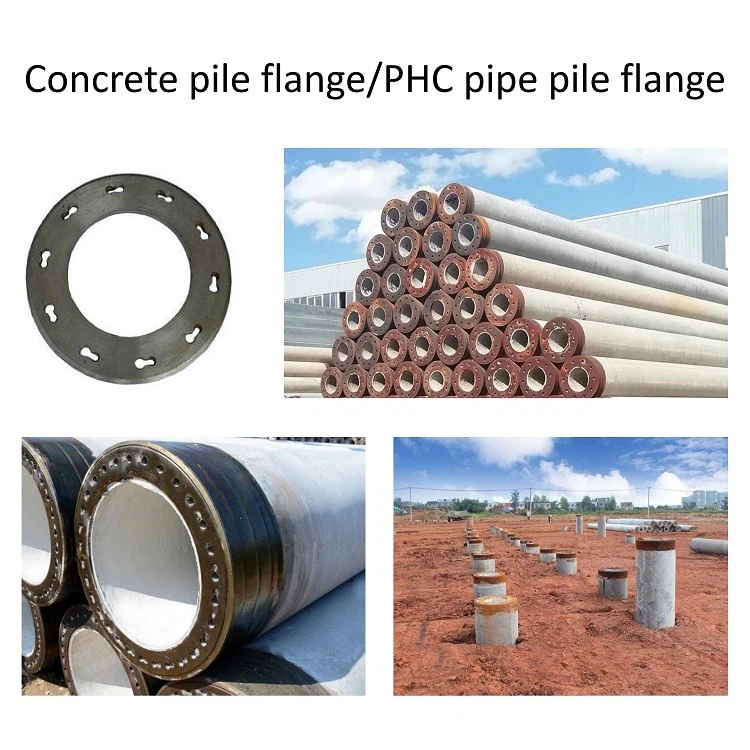

Concrete pipe flange/PHC pipe pile flange
FAQ:
Q:Do you have a manual for your equipment?
A: Yes, there is a certain guarantee of product quality.Our equipment is guaranteed for one year
Q：What are the main functions of this equipment?
A：It is mainly suitable for leveling the flange after the hot bending craft with outer diameter of 300-600 or 500-800.
Q: How long will it take to make this equipment?
A: About 30 days.
