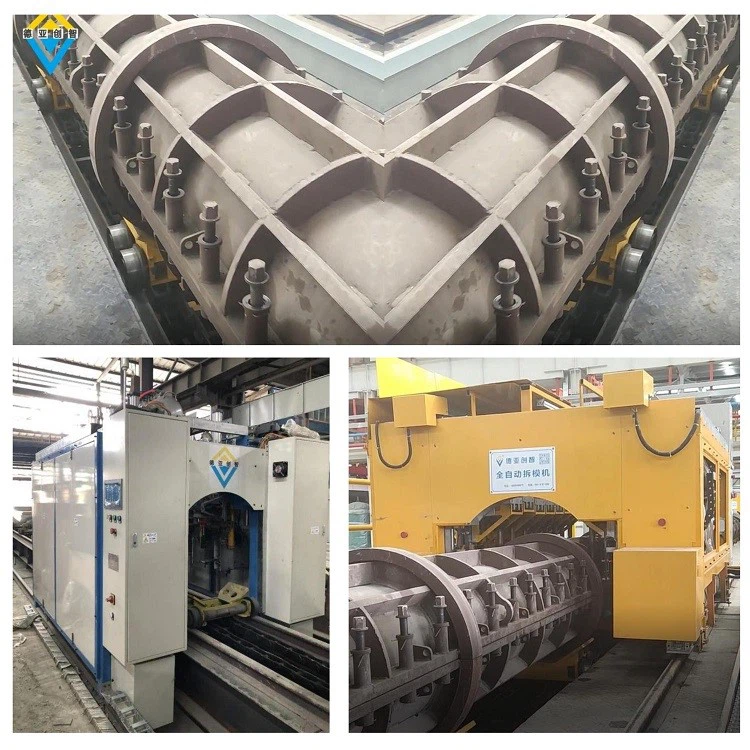

Automatic Concrete Pipe Mould Detaching Machine is also called screws detaching robot. It is an intelligent screws unfastening machine. Its working procedure is as below (taking the operation mode that the pipe is fixed and the machine moves and works for example): the pipe mould reach the detaching station→the balance aligning machine aligns the pipe mould and make it horizontal→detaching machine moves to the position of pipe mould, the sensors will look for the screws automatically and the detaching device will loosing the screws automatically→when the first group of screws is finished, the machine will moves to the next position and then loose the next group of screws until the whole screws of the pipe mould are loosed, the pipe mould can be detached. And then the crane can lift the upper mould.
Through years of deep research and development, the automatic concrete pipe mould detaching machine has been introduced to the market. Through years of application and continuous upgrading, the products have been mature and stable, Jiangmen Sanhe, Shaoxing Sanhe, Yancheng Sanhe, Zhongshan Jianhua and other pipe pile plants have been promoted and applied.
Chart of process
Product parameter (specification)
|
Main Product Parameter: |
||
|
NO. |
NAME |
BRAND NMAE |
|
1 |
PLC |
Panasonic |
|
2 |
Extended Module |
Panasonic |
|
3 |
Touch Screen |
WEINVIEW |
|
4 |
Sensor |
Autonics |
|
5 |
Hydraulic Pressure Station |
Zhuli |
|
6 |
Servo Driver/Motor |
VEICHI |
|
7 |
Air Cylinder |
Chinese Brand |
|
Power Supply Mode |
Three-phase 380 V |
Main Air Pressure |
0.5Mpa ~ 0.8Mpa |
|
Total Power |
18KW |
Main Oil Pressure |
- |
|
Overall Dimension (length * width * height) |
3150*2250*2150mm |
Total Weight |
3.5T |
|
Operation Mode |
The pipe mould moves, the machine is fixed and works . The pipe is fixed, the machine moves and works. The pipe mould moves, the machine automatically follows the pipe mould and works. |
||
Applicable product specifications (unit: mm) (dimensions can be customized)
DY-CM-A360: ∅300, ∅400, ∅500, ∅600;
DY-CM-A680: ∅600, ∅700, ∅800;
Product feature
The worker operate the machine by the touch screen;
Automatic operation is realized,which can let young people willing to join and make the pipe pile industry sustainable development.
The material cost is expected to decreased;
Production's quality is reliable;
During the automatic operation, if the fault stops or needs to be suspended, the "automatic mode" can be switched to "manual mode". Under the automatic state, the transmission part is forbidden to prevent the misoperation of the equipment and cause personal injury.
Application
Machine application:
Finished products application:
Concrete pipe pile
Our patent
FAQ

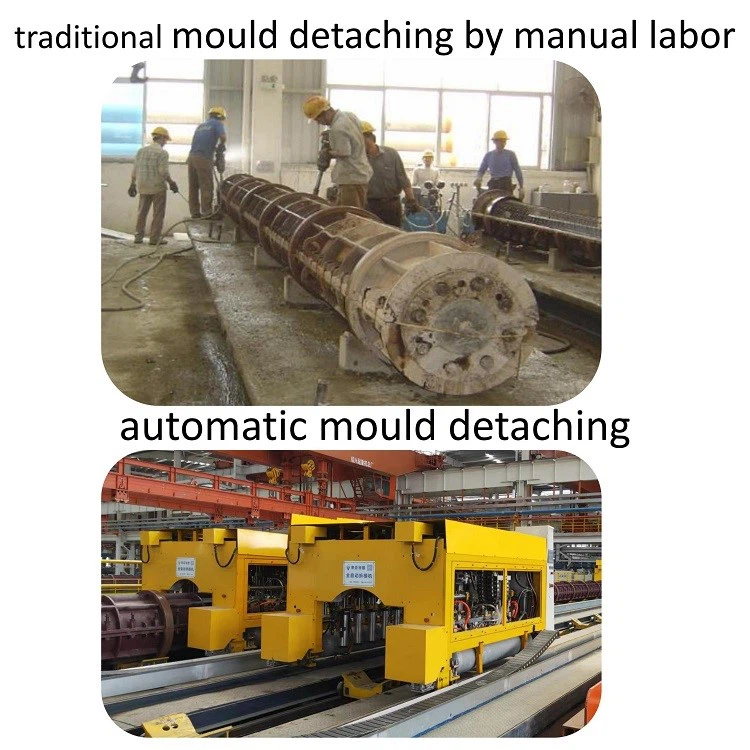

Q: Compared with the manual work, what's the advantages of the Automatic Concrete Pipe Mould Detaching Machine?
A: For the tradition mode, the workers hold the the wrenches all the days, when the worker is tired, the working speech will slow down, then it would the whole production line. The Automatic Concrete Pipe Mould Detaching Machine can greatly ensure the production beat. And it is high reduce human labor strength, which can greatly avoid the instability caused by manpower.
Q: Do we need to change the pipe mould if we buy this machine?
A: No need. If the screws are heavy worn out, you can just change the screws to ensure the machine can loose the screws automatically.
Q: Why do we need to change the worn out screws?
A: Because the machine is work automatically, the loosing action only for one time, which means the wrenches need to complete the work for one time and the machine will move to the next position. If the screws are heavy worn out the wrenches will slip and fail to loose the screws.
