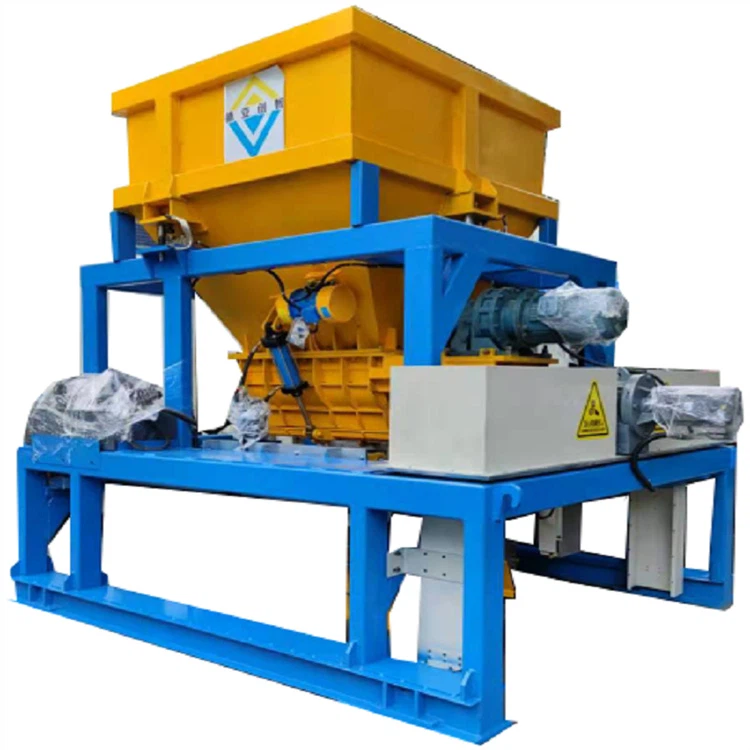

Automatic Feeding Machine for PHC Pipe Pile

Automatic Feeding Machine for PHC Pipe Pile has the following functions:

Automatic concrete weighing, feeding, concrete forming and pipe mould type identifying.

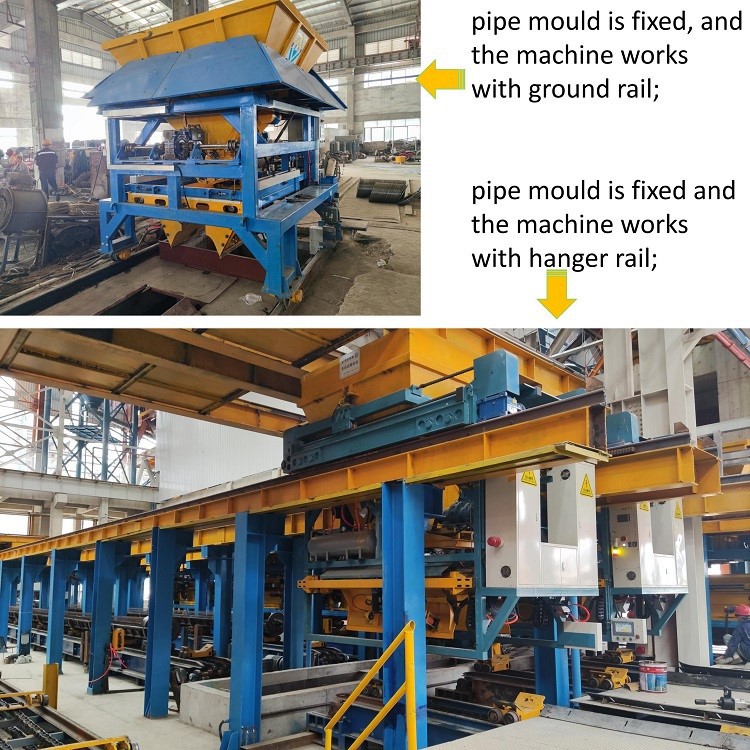

The machine can control the falling concrete with the double roller feeding device. In order to adapt to different conditions of pipe pile plant, there are three option for the machine's operation mode: pipe mould is fixed, and the machine works with ground rail; pipe mould is fixed, and the machine works with hanger rail; the machine is fixed, pipe mould moves through the control of the machine. Besides, the feeding machine not only applies to the single pipe, but also applies to Joint pipe.

Applicable product specifications (unit: mm) (dimensions can be customized)

DY-WL-A360: ∅300,∅400, ∅500, ∅600;

The concrete feeding can be finished within 6 minutes after the pipe pile reaches the feeding station.

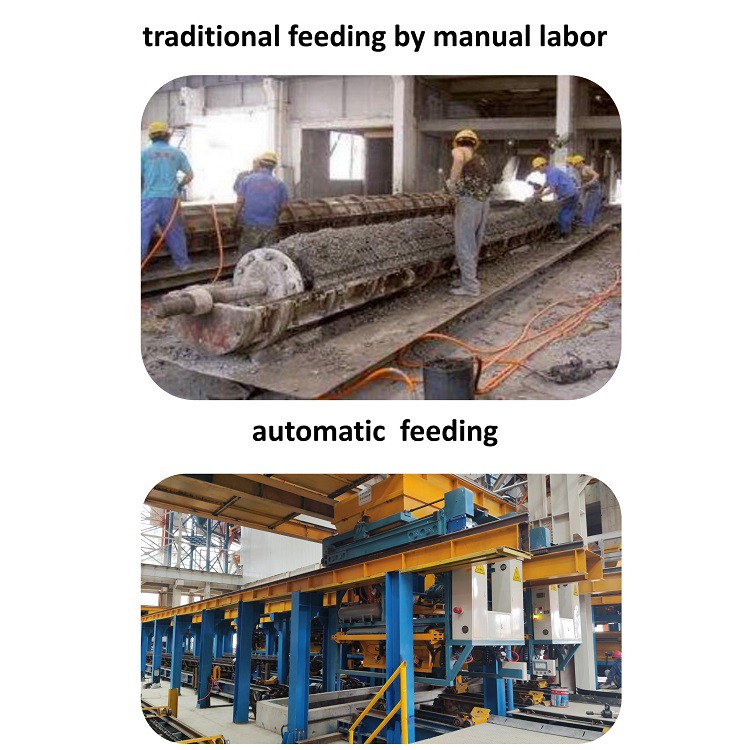

Reduce labor cost and strength: due to the automatic forming device, the automatic feeding machine for PHC pipe pile can prevent wasting a lot of manpower to shovel the scattered concrete which is caused during the feeding process. Furthermore, it can reduce labor cost and strength and improve the working environment which can reduce employee turnover;

Reduce material cost: the machine can control the concrete weighing and the walking speed automatically with electronic scale and PLC which can make sure the concrete concrete falling uniformly and achieve accurate control of materials. Using this machine can effectively reduce the deviation of the concrete weight of each pile. It is conducive to ensure the material weight of each pile and control cost of the material at the same time;

Avoid concrete stratification to ensure the pile's quality: It is conducive to the beating and uniform feeding of sand, stone and cement by increasing the mixing device at the discharge port;

Uniform feeding to ensure the strength of the pile: due to its intellectual control of walking speed and concrete weight, it can achieve uniform feeding, which can ensure the strength of the pile.

Machine application:

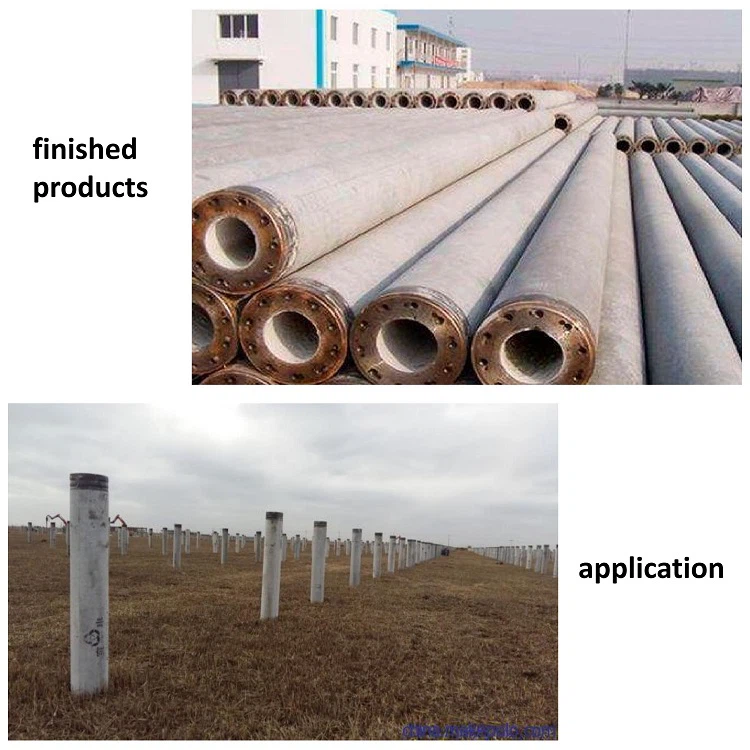

Finished products application:

Concrete pile/PHC pipe pile

Guangzhou Deya Machinery Manufacturing Co. Ltd, national high-tech enterprise, is a science and technology service enterprises focusing on PHC pipe pile products industry with the core of technological innovation + service + big data application. Deya company provides the overall solution of intelligent production of cement products to customers, including the research and development of professional intelligent equipment, the cultivation of professional talents and provision of site management solutions, and so on. Deya has a professional R & D elite team with more than 50 persons.

Adhering to the "unity, integrity, innovation, service" deya spirit.

Adhere to the "quality excellence, customer satisfaction first" service tenet.

Q: How many workers do we need to run the Automatic Feeding Machine for PHC Pipe Pile?

A: 1 worker. What's more, if the worker is excellent, he/she can run two machine. Compared with the tradition feeding mode, using this automatic feeding machine can save a lot of manpower.

Q: How does the machine run automatically?

A: It is controlled by PLC. The machine will be run automatic according the setting program. The worker is operate the machine by the touch screen.

Q: How many days do you need to produce the Automatic Feeding Machine for PHC Pipe Pile?

A: there will be 60 days needed.

Q: Can the automatic feeding machine for PHC pipe pile adapt to the environment of the pipe pile plant?

A: The automatic feeding machine for PHC pipe pile is a kind of widely used equipment in concrete production line, and can usually adapt to various types of production environment, including pipe pile plant. Pipe pile plants usually use a lot of concrete to produce pipe piles, so the The automatic feeding machine for PHC pipe pile is a very suitable equipment. When using the automatic feeding machine, it is necessary to adjust and configure according to the specific production requirements of the pipe pile plant to ensure that the equipment can meet the actual needs of the production line and meet the requirements of the pipe pile production.
