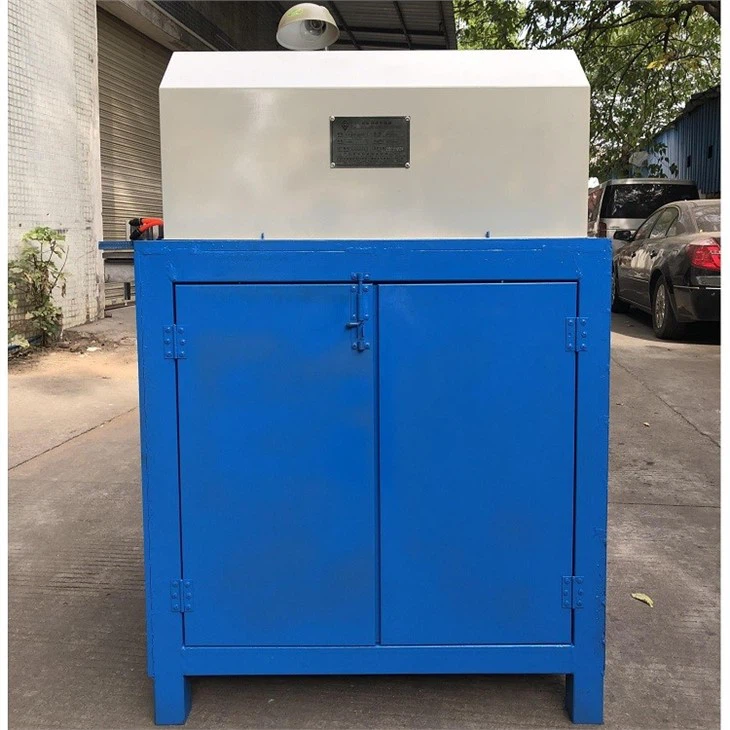

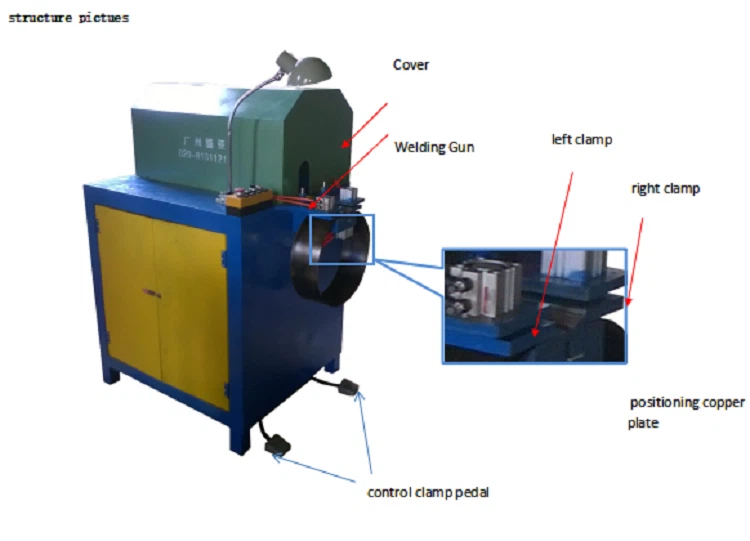

PHC Pipe Pile Strip Steel Automatic Welding Machine is used for automatic welding of strip steel(skirt plate) with uniform speed and smooth welding edge. It is also called skirt plate welding machine. It can designed to be full welding mode or spot welding mode. It mainly consist of the rack, cover, welding device, power supply. It applies to the strip steel(skirt plate) width in100mm- 200mm and thickness of 1mm-2mm joint welding.

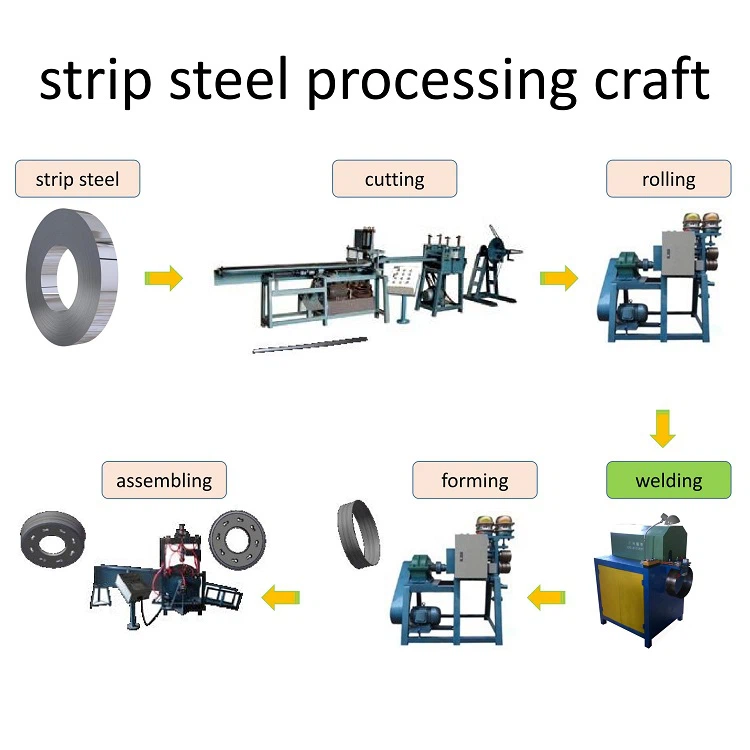

Chart of process
Product parameter (specification)
|
Main Product Parameter: |
|
Welding machine item No.: ws-400; |
|
Argon flow:10～15L/min; |
|
Manufacturing Capacity |
700～1000 PCS/8H |
Voltage |
Power supply of control department:220V |
|
Power Consumption |
15.75KW |
Air Consumption |
15L/min |
|
Machine Size (length*width*height) |
1320×900×1455mm |
Total Weight |
0.5T |
Applicable product specifications (unit: mm) (dimensions can be customized)
DY-HF-A360: ∅300,∅400, ∅500,∅600;
DY-HF-A680: ∅600,∅700, ∅800;
DY-HF-A8010: ∅800,∅900, ∅1000;
Product feature
PHC Pipe Pile Strip Steel Automatic Welding Machine has the below features:
Automatic welding, uniform welding speed , smooth joint seam;
fast speed, high efficiency;
Using gas shielded arc welding
suitable for a variety of different sizes of strip steel(skirt plate) welding.
Simple handling, no need for professional welding operators.
Safety precautions
When equipment debugging or replacement of the welding needle, you need to ensure that the power supply of the welding torch is closed;
After replacing the needle, you must confirm the height of the needle before working.
The operating voltage of the equipment is 220V and the welding machine is 380V.
Under the operating conditions, the air pressure should be 0.5MPa, and the argon flow rate should be 0.5~0.8 ㎥ / min.
Application

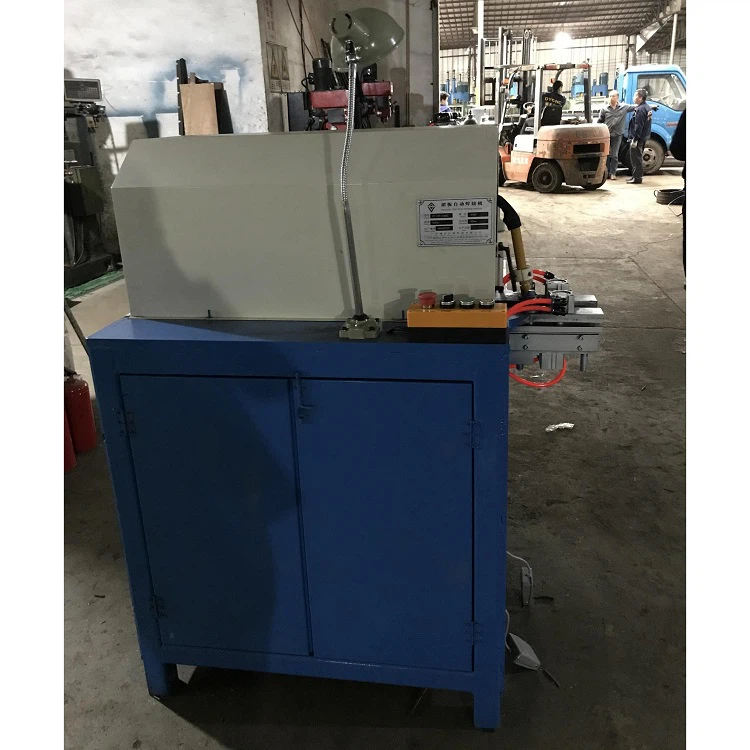

Machine application:

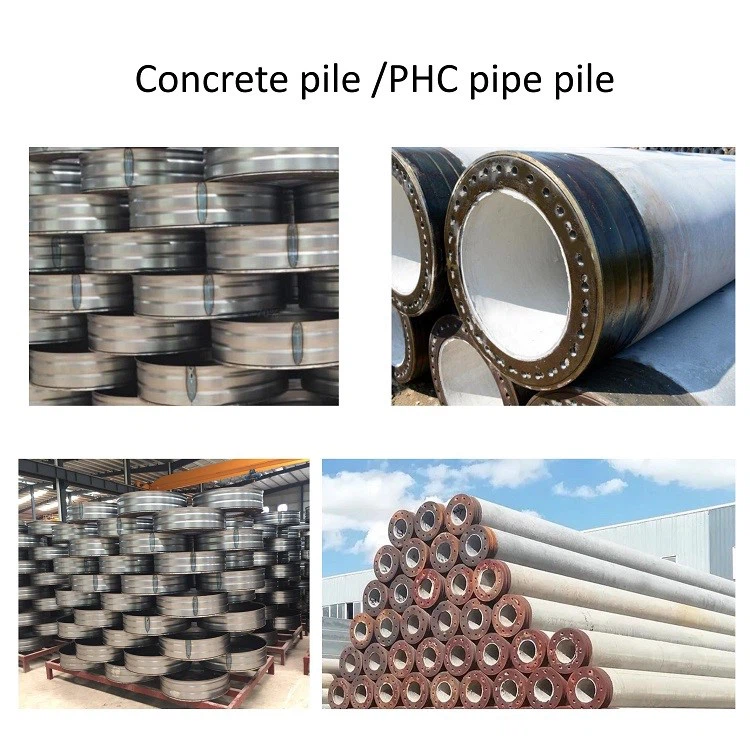

Finished products application:
FAQ
Q: Do you have a welding machine for ∅1200 and ∅1400 ?
A: Yes. PHC Pipe Pile Strip Steel Automatic Welding Machine can be design to apply for large pipe pile like ∅1200 and ∅1400. Please contact our sales team for this special need.
Q: How do you send the parts to us?
A: Normally send by express. It depends on your location.
Q: What are the reasons for using gas shielded arc welding in the PHC Pipe Pile Strip Steel Automatic Welding Machine?
A: The reasons is as below:
Wide range of application: gas shielded arc welding can be used for a variety of different materials, including iron, steel, aluminum, magnesium and other metal materials welding, but also can be used for welding thick plate, thin plate and other different thickness of materials.
Environmental protection and health: the welding process produces less smoke and harmful gas, less pollution to the environment, and will not cause too much damage to the operators.
